Electro-Air 14x28x1 Filter Replacement: What Fits
Someone reads me a tape measure number, says their electronic air cleaner quit, and asks whether a 14x28x1 drops into the empty cabinet. Almost always the answer is no, and the filter is not the problem. The cabinet is.
TL;DR Quick Answers
A 14x28x1 pleated filter is not a direct replacement for an Electro-Air electronic cell. Electro-Air cabinets are built around 16x25, 20x20, and 20x25 nominal openings and hold cells four to five inches deep, so a one-inch panel sits loose and lets air slip past the edges. A 14x28x1 is correct only once that cabinet is replaced with a one-inch rack or return grille measuring close to 13.5 by 27.5 inches. Whoever retires the old unit must remove the power supply, not just unplug it.
Top Takeaways
- There is no 14x28 Electro-Air cabinet. The lineup is 16x25, 20x20, and 20x25 nominal.
- A 14x28x1 measures 13.5 by 27.5 by 1 inches actual.
- An intact cabinet takes four to five inch media at its cabinet size.
- A one-inch panel in a five-inch cabinet lets air bypass the media.
- Unplugging is not enough. The power supply must be removed or permanently disabled by a licensed technician.
Does a 14x28x1 Pleated Filter Fit an Electro-Air Cabinet?

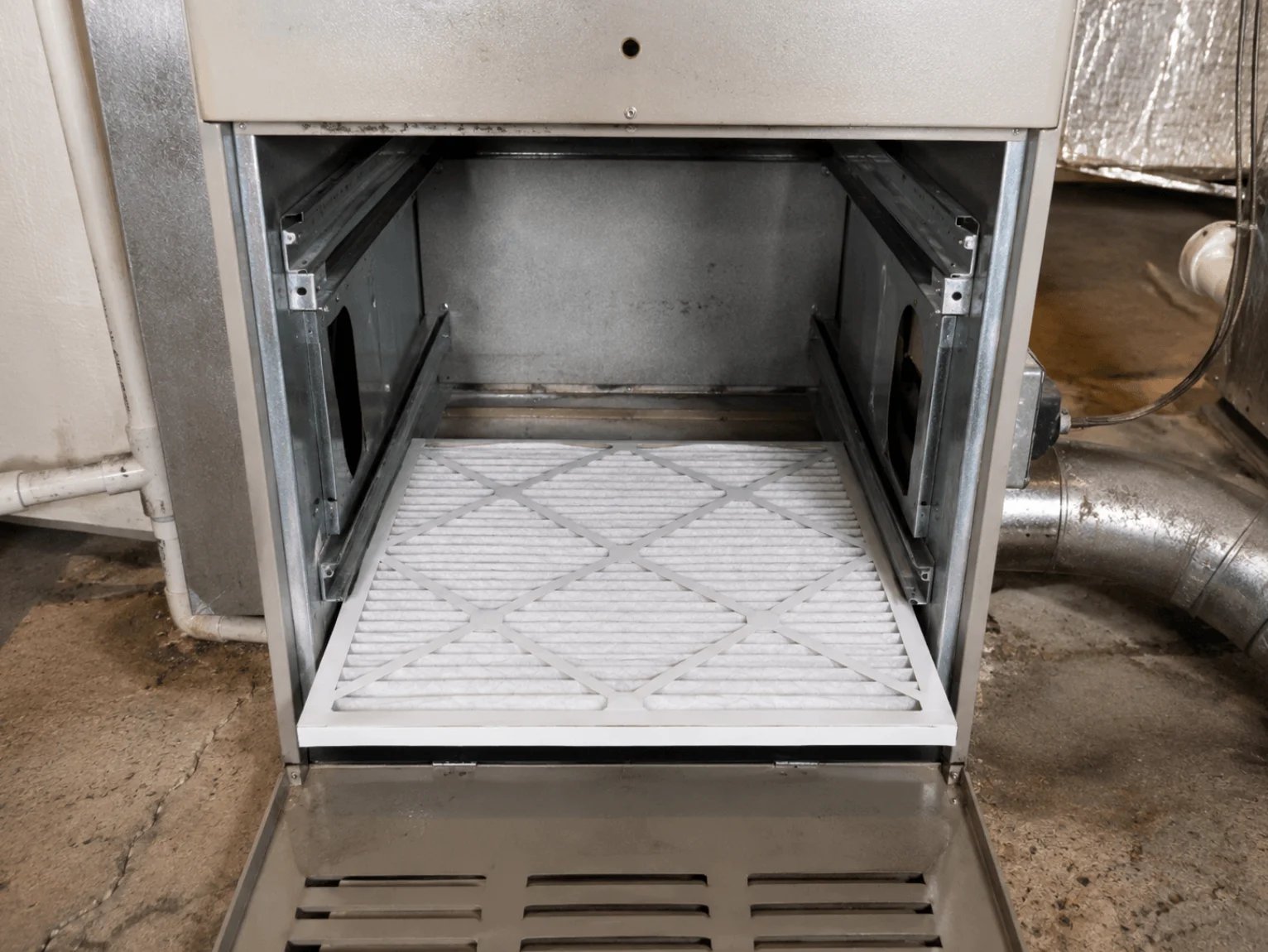

Almost never, and depth is the reason before width. An Electro-Air cabinet holds a collector cell four to five inches deep between guide rails, so a one-inch panel seats against nothing and air takes the path around it.
I have opened cabinets where a previous owner did exactly that. The filter looked barely used after a season, which is the tell, not good news. A filter that stays clean in a dirty house is not filtering. That dust landed on the blower and coil.
What Size Does an Electro-Air Electronic Air Cleaner Actually Take?
Electro-Air units are named for the duct opening they sit in, and the lineup runs 16x25, 20x20, and 20x25 nominal. Prefilters and postfilters sell by those cabinet sizes, the fastest way to confirm yours. Those are the openings common media cartridges are built for, which is why installers reach for a 16x25x5 media filter on one cabinet and a 20x25x5 on the next. Nothing in that lineup is 14 by 28.
So where does the number come from? When a cabinet gets pulled, the hole left in the return trunk rarely matches a catalog size, so the rack gets built to the opening instead of the opening reworked to a stock filter. Measure enough of those and you get numbers like 14 by 28. The size is real, but it was never an Electro-Air size, which is why searching it against the brand returns nothing that fits.
Five Minutes With a Tape Measure: What to Check Before You Order
1. Read the nameplate. On the access door or beside the power supply. Reading 16x25, 20x20, or 20x25 means the cabinet is intact and a one-inch panel is wrong.
2. Measure the depth of the slot, not the face. Four to five inches of track means a cartridge, one inch a panel. Depth decides which kind, face dimensions only the size.
3. Measure the opening to the nearest eighth. Inside edge to inside edge, against actual dimensions, not nominal names.
If one and two disagree, believe the tape. A 20x25 nameplate above a one-inch slot means somebody already converted this cabinet.
Can I Pull the Cell and Drop a Pleated Filter In?
You can, but two things must happen first, and one is not optional. The high-voltage power supply must be removed or permanently disabled by a licensed technician. Manufacturer guidance on converting an electronic air cleaner to media is explicit that unplugging is not sufficient, because someone can plug it back in and a live supply behind an empty cabinet is a fire risk.
Second, the media has to fill the opening. The standard conversion is a four to five inch cartridge at the cabinet's nominal size, in the track the cells came out of, the same architecture as media cabinets such as the Trion Air Bear. Adapter brackets shrink a loose cavity, because edge leakage around an undersized filter is a documented failure.
Two steps get skipped on almost every conversion I inspect. Pull the mesh prefilter and carbon postfilter with the cells, since both lose their job once the discharge stops and only add resistance. Then check the arrow: a panel slides in backwards without complaint, bows under load, and reopens the gaps you closed.
Pleated media is more restrictive than the cell it replaces. I check static pressure afterward, because the complaint after a bad swap names the back bedroom that stopped getting warm.
When Is a 14x28x1 Actually the Right Filter?

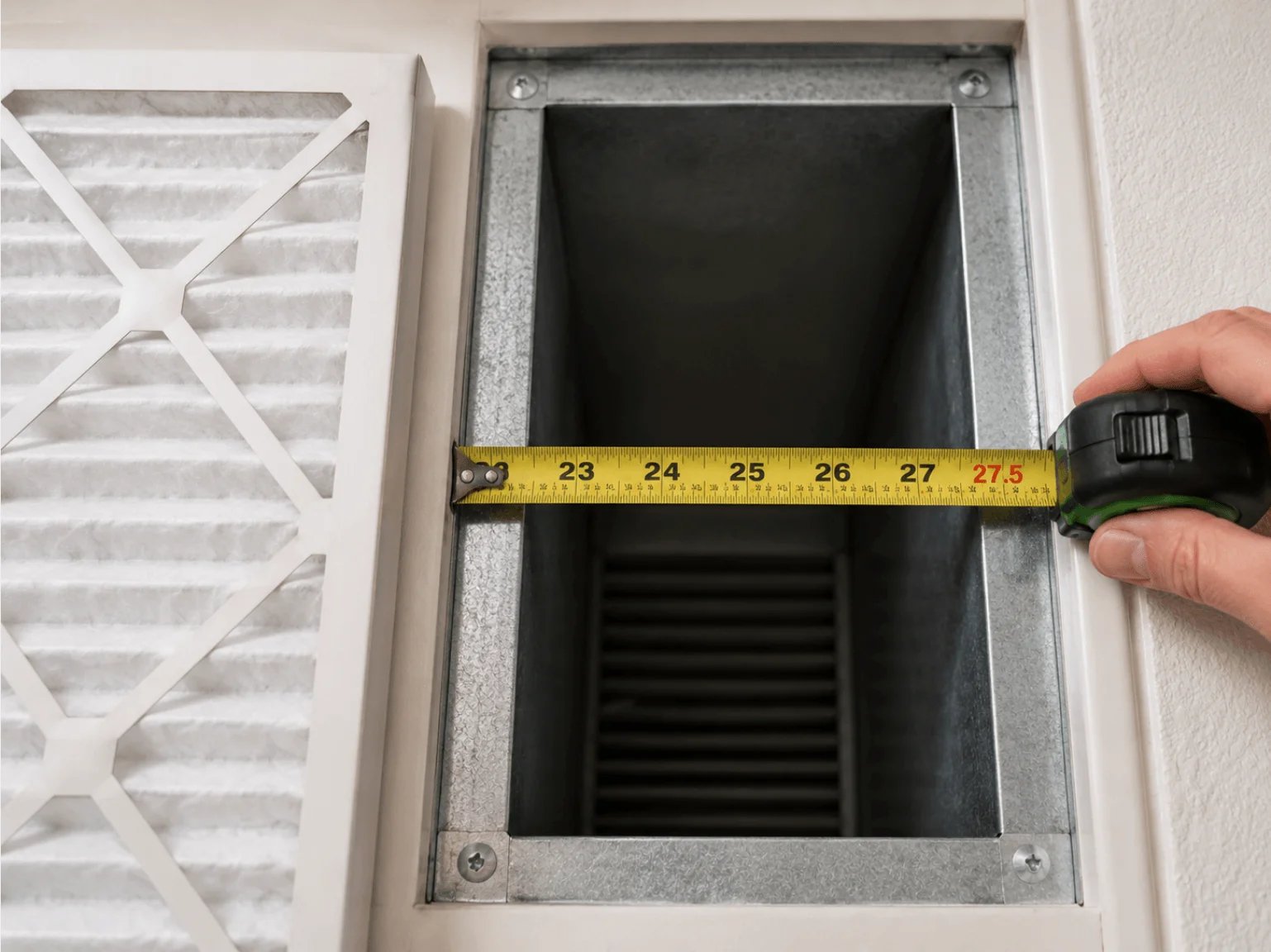

When the electronic cabinet is gone entirely. Once a one-inch rack or filtered return grille replaces the housing, the opening you measure is the opening you buy for, and plenty measure close to 13.5 by 27.5 inches.
A 14x28x1 air filter is a nominal designation, not a literal measurement. Its actual dimensions are 13.5 by 27.5 by 1 inches, and pleated panel filters built to the 14x28 nominal size are stocked in MERV 8, MERV 11, and MERV 13 at those exact dimensions. EPA's advice is to make sure the filter fits snugly so air does not leak around it, and not to bend or crush one to make it fit.
Retail shelves rarely carry this size, which is why people force a 14x30 or 12x28 into the slot. Both leave gaps. Once measured, write the size inside the access door in marker. Most wrong filters I find are recall errors, not measuring errors.
Which MERV Should You Choose After Converting?
Match MERV to the household, then confirm the blower moves air through it. MERV 8 handles dust and pollen and is safest on an older system with marginal ducts. MERV 11 catches finer dander and suits homes with pets. MERV 13 is for respiratory sensitivity. If your old air filter carried an FPR number, the two scales do not translate directly.
Federal guidance points higher. EPA recommends at least MERV 13, or as high a rating as the system fan and filter slot can accommodate. I object only to skipping that qualifier, because a converted cabinet on a one-inch panel is the case it was written for.
So my rule is narrower, not opposed. On a proper four or five inch track, run MERV 13. On a one-inch panel, start at MERV 11 and step up if the blower is not straining. With asthma in the house I go to 13 and fix the airflow.
One-inch panels hold less media, so they load faster. Check your filter once a month.
Expert's Quote
"The mistake I see most often is not the filter choice. It is the empty cabinet. People pull the cells, drop in whatever fits loosely, and never touch the power supply. Given the choice, I would rather find a filter that is filthy than a live supply sitting behind a panel that was not filtering anything all winter. A dirty filter tells you the system is working. A clean one in a dusty house tells you it is not."
— Laurel Ubertini
Supporting Statistics
1. MERV 13 Is the First Rating Required to Capture Fine Particles
MERV 11 must capture at least 20 percent of particles in the 0.3 to 1 micron range. MERV 13 and above, at least 50 percent.
Below MERV 11, no fine-particle efficiency is required.
2. An Electronic Cell Starts Near 60 Percent and Falls
Electrostatic precipitators start at 60 percent or more single-pass removal, reach 95 percent at low airflow, then decline as plates load.
A washed cell performs well. An unwashed one drifts down weekly.
EPA, Residential Air Cleaners: A Technical Summary
3. Roughly One in Ten Americans Currently Has Asthma
As of 2024, 8.6 percent of U.S. adults and 6.5 percent of children have asthma.
That is where a higher MERV earns its airflow cost.
CDC National Center for Health Statistics, FastStats: Asthma
Frequently Asked Questions
Is a 14x28x1 the Same as a 13.5x27.5x1, and Which Do I Order?
Same filter, and order the 14x28x1. That is the nominal name for a filter measuring 13.5 by 27.5 by 1 inches actual. Searching the actual figure returns nothing or a custom cut.
Can I Leave the Unit Powered After Removing the Cells?
No. With the cells out it serves no purpose and creates a hazard. That work belongs to a licensed technician.
Will a 14x30x1 Work Instead?
Not in an opening sized for 14x28. Two extra inches will refuse to seat or bow the panel, and a bowed filter leaks at the corners.
Can I Stack Two Panels for More Filtration?
No. Stacked panels sit face to face, doubling resistance without adding surface area. More media means a deeper filter and rack.
Do I Still Need the Carbon Postfilter After Converting?
No. It caught odors and adsorbed ozone from the electrical discharge off the plates. With the cells retired there is no discharge, so it only adds resistance.
How Do I Know if Air Is Bypassing the Filter?
A filter that looks clean after ninety days in an occupied home is the sign. Check the edges for a finger-width gap.
Glossary
- Electronic air cleaner (EAC): A duct-mounted unit that charges particles and collects them on metal plates.
- Collector cell: The removable washable plate assembly in an EAC.
- Nominal size: The label size on a filter, such as 14x28x1. An ordering identifier, not a measurement.
- Actual size: The measured dimensions, about half an inch under nominal on each face.
- Filter bypass: Air traveling around a filter instead of through it.
- MERV: Minimum Efficiency Reporting Value. Higher numbers capture smaller particles and resist airflow more.
